Obsydian Metal Products Ltd

Wrought Iron Style Metal Handrail on Two Side Bolt Posts - Amon- 1m - 2.4m

Wrought Iron Style Metal Handrail on Two Side Bolt Posts - Amon- 1m - 2.4m

Regular price £165.00 GBP
Regular price Sale price £165.00 GBP
Sale Sold out
Tax included.
Handrail Length
Finish

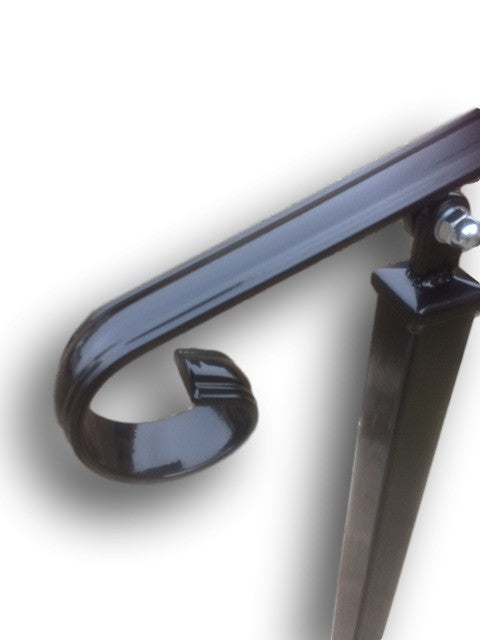

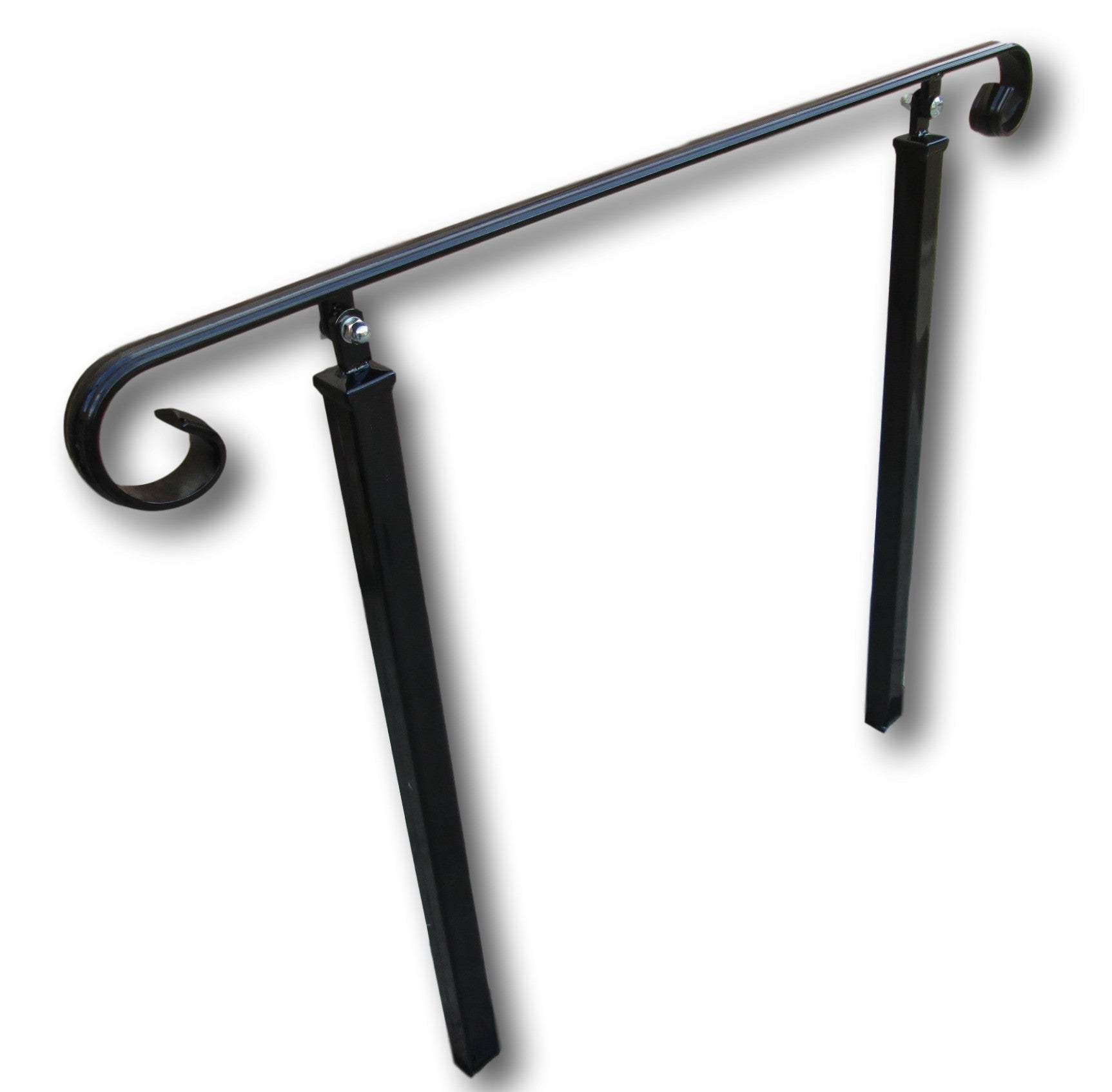

Wrought Iron Style Decorative Handrail on Two Pivoting Side Bolt Posts

These versatile handrails are an affordable DIY method of adding a handrail to your property. The handrail pivots on the two posts, this allows the handrail to be installed down a slope, on uneven ground or down a small flight of steps. The handrail is designed to sit at approx 90cm high, the ideal height for holding onto.

These handrails are designed to be bolted to the outside of a wall, typically that form a set of steps or stairs. Please note that if you have paving slabs on your steps that protrude over the edge of your wall you will not be able to install side bolting posts without cutting out a section of the slab as the posts are designed to bolt to the wall and sit flush against it.

Available in a choice of finishes:

Bare Metal - supplied with no coatings applied, allowing you to add the finish of your choice and colour.

Black Zinc Primed - one coat of a zinc based paint is applied to help prevent rust, your rail will arrive black and will require a top coat and then the usual ongoing maintenance you traditionally associate with wrought iron.

Specification

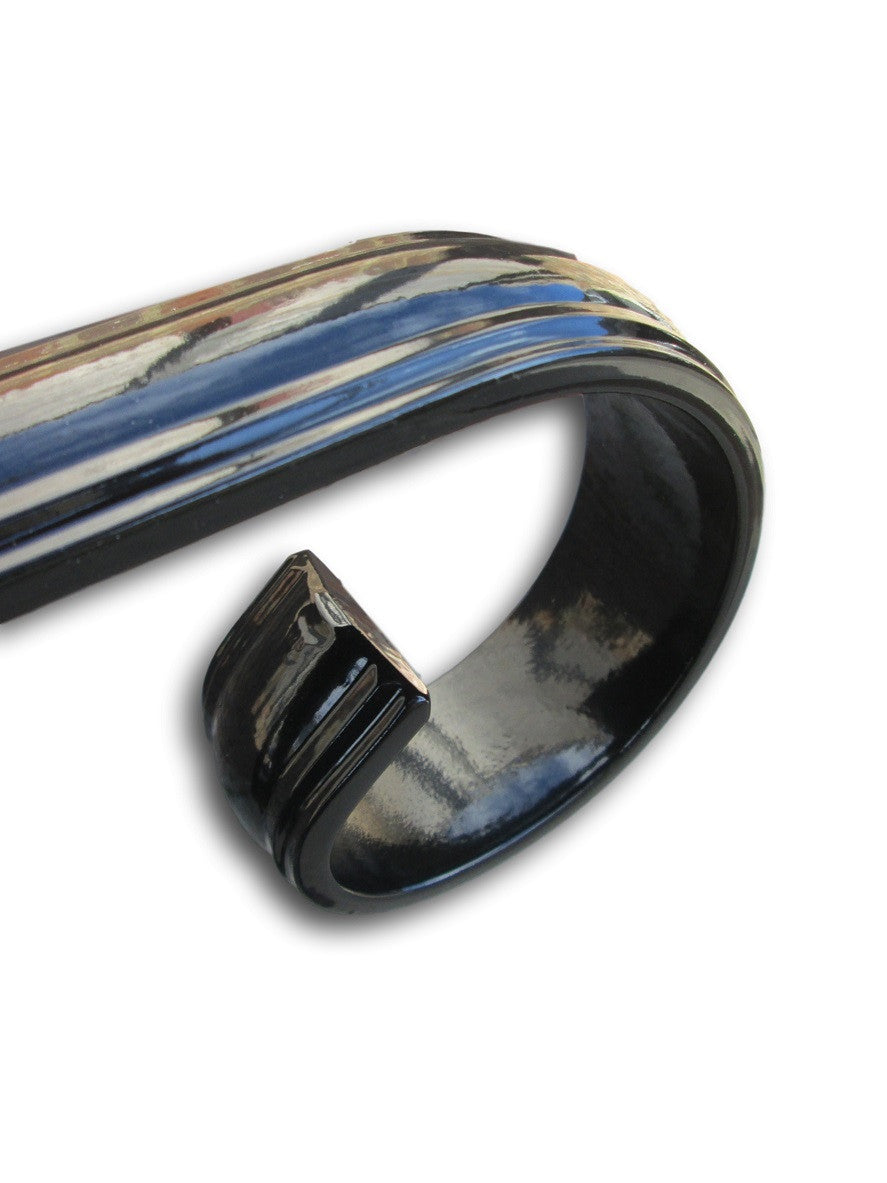

Top handrail - 40mm x 11mm convex half moon indented solid bar

Posts - 40mm x 40mm box section

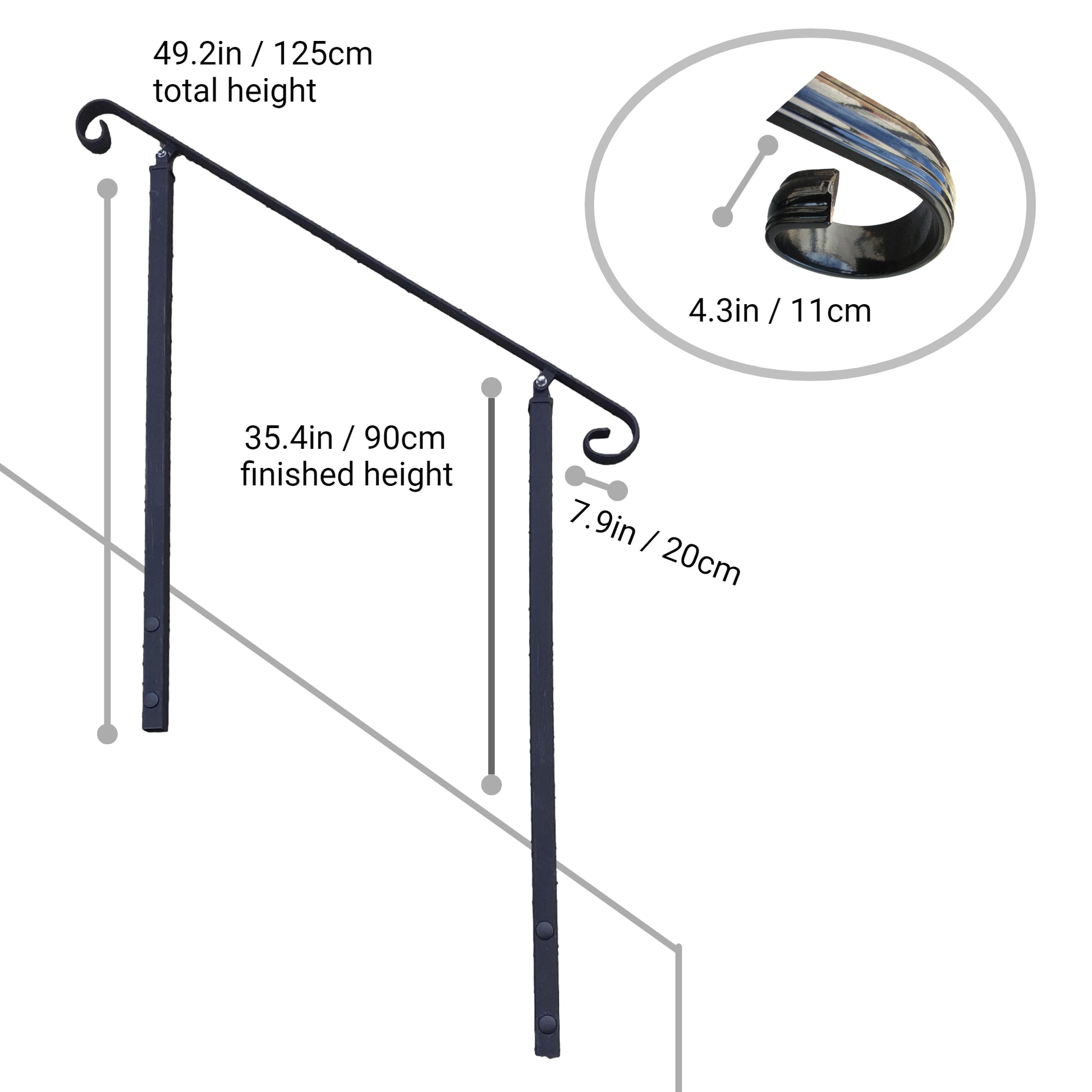

The handrail extends 20cm beyond the post at each end. Therefore a 1.2m long handrail will consist of 20cm of handrail, then a post (4cm) with 72cm of handrail between the two posts, a second post (4cm), with a further 20cm protruding at the other side of the post.

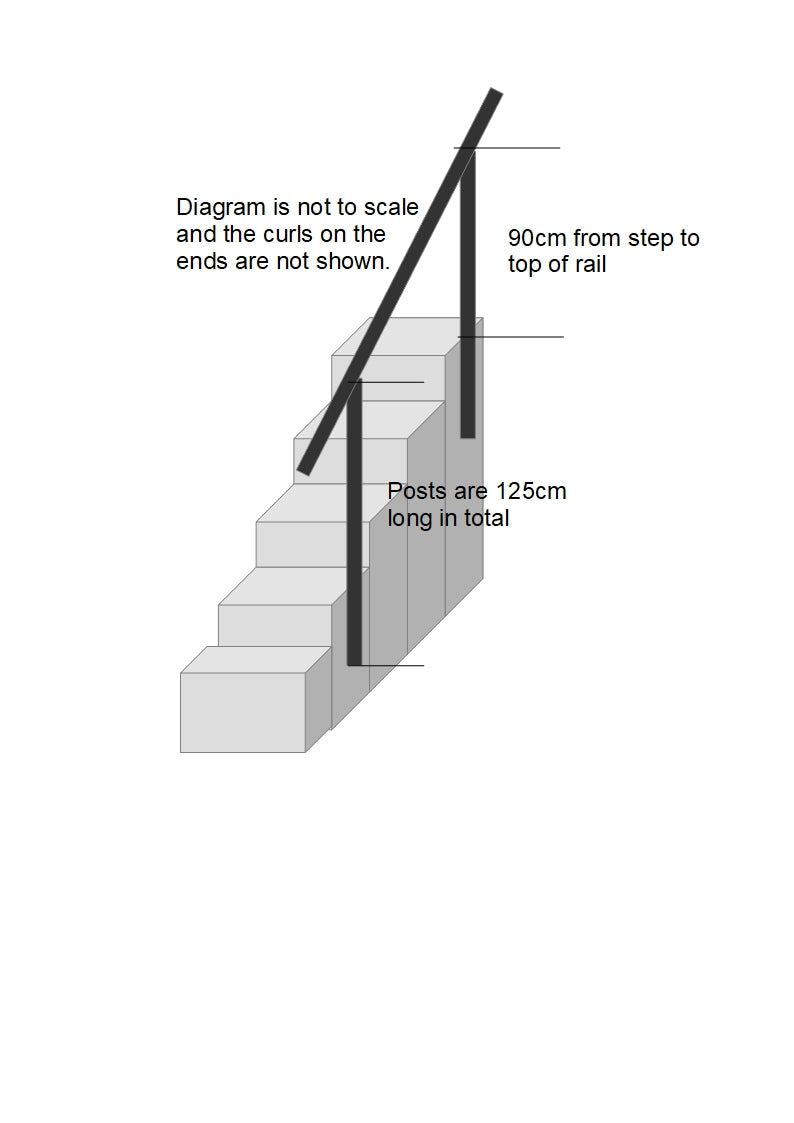

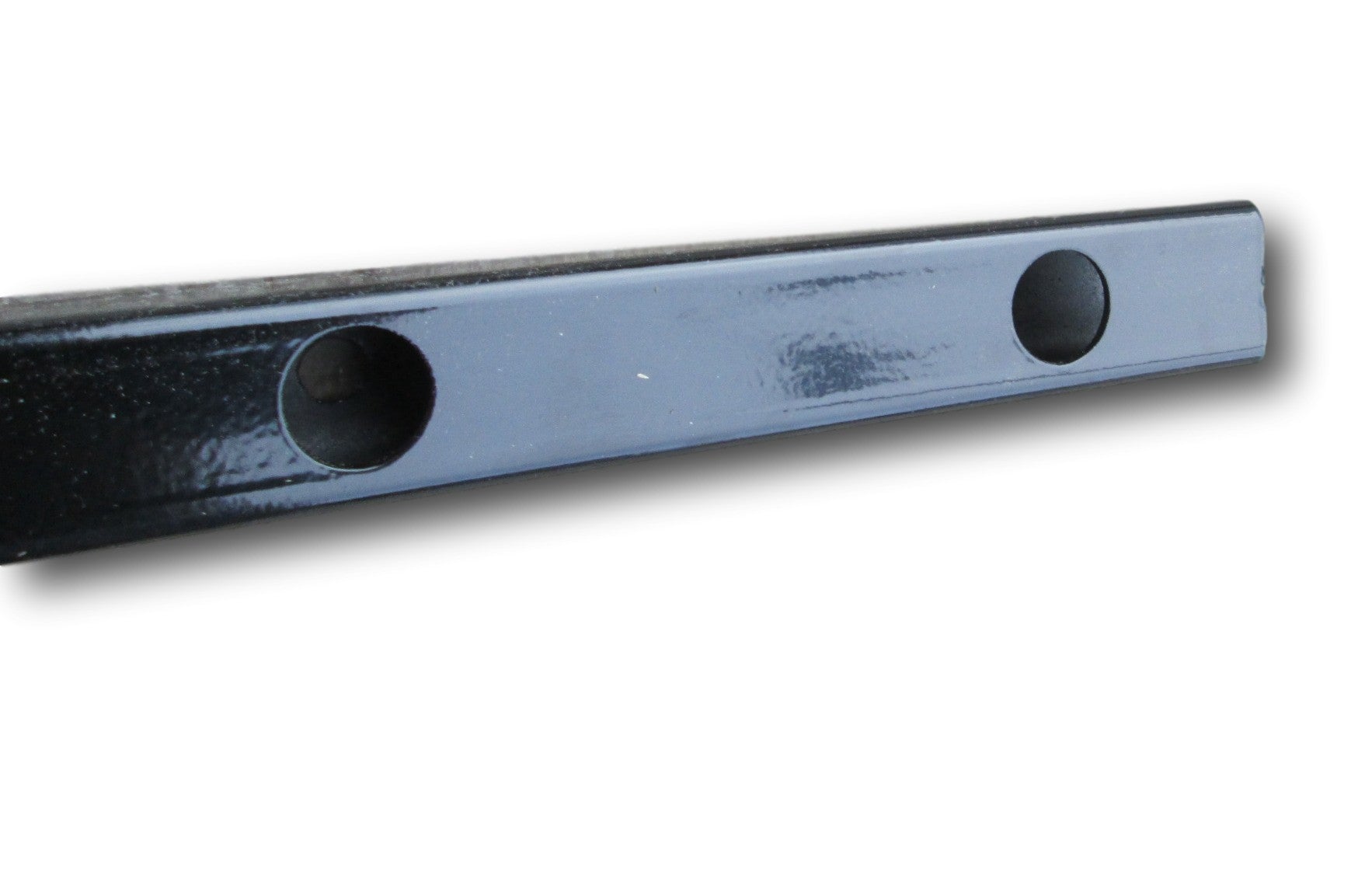

The side bolting post is 125cm long. The handrail is then secured on top which adds approx. 2cm to the height. There are two holes drilled in the posts. The first hole is drilled 6cm up from the bottom and the second hole is drilled 20.5cm up from the bottom.


The posts are drilled all the way through, there is a 12mm hole one side, for securing to the wall and a 25mm hole the other to fit a socket through. Two black plastic plugs are supplied to cover the fixing holes once the post has been installed.


M10 thunder bolts are supplied for fixing the post to a brick or concrete wall. Please note that they are not suitable for fixing into wood.

Shipping Policy

UK delivery only covers the UK mainland. If you require delivery to the highlands or islands, please confirm the postage cost with us before purchasing.

We will ship internationally, please contact us for a price before purchasing.

Returns

All our products are handmade and therefore will not be precisely uniform in nature

Returns are accepted. The item must be returned within 30 days at the buyers expense.

Guarantee

All our products carry a two year guarantee against faulty workmanship. Unfortunately we cannot guarantee against rust as this is a natural effect on iron.

Measuring for your Handrail


The handrail extends 20cm beyond the post at each end. Therefore a 1.2m long handrail will consist of 20cm of handrail, then a post (4cm) with 72cm of handrail between the two posts, a second post (4cm), with a further 20cm protruding at the other side of the post.

Materials

Dimensions

Care information
