Wrought Iron Metal Handrail on Four Posts - Ozias - 4.1m - 5.6m
Wrought Iron Metal Handrail on Four Posts - Ozias - 4.1m - 5.6m
Wrought Iron Metal Handrail on Four Posts - Ozias - 4.1m - 5.6m

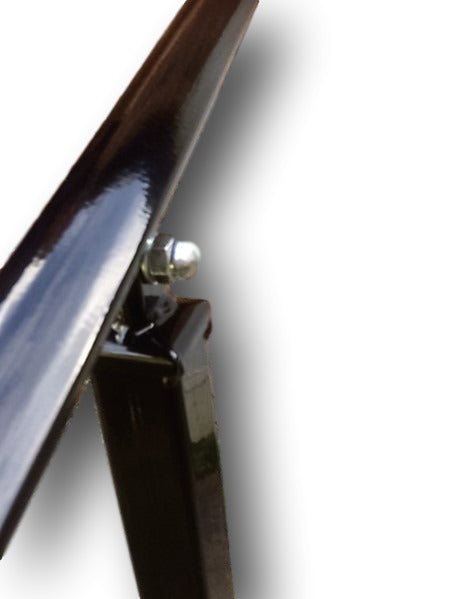

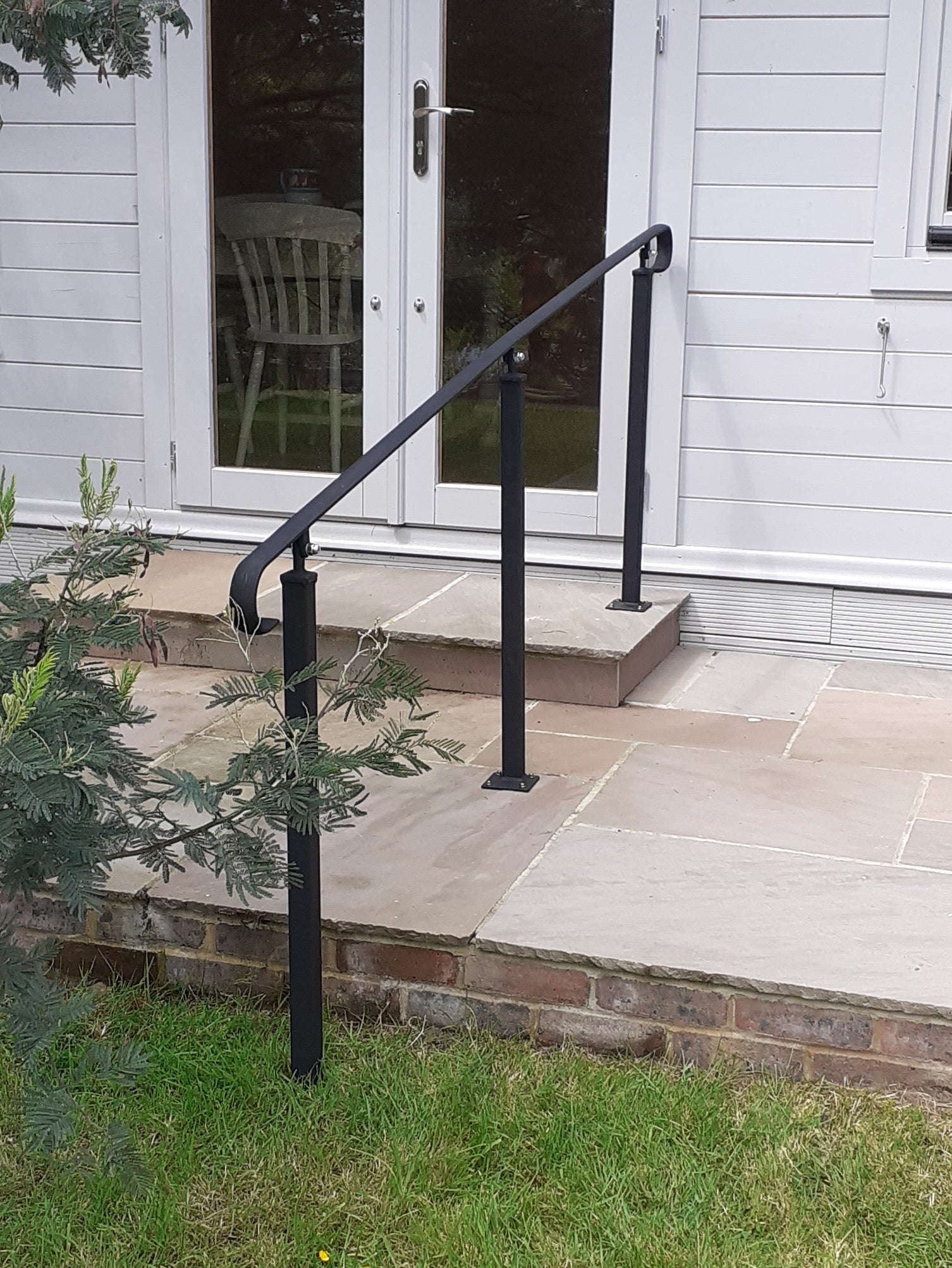

These versatile handrails are an affordable DIY method of adding a handrail to your property. The handrail pivots on the four posts, this allows the handrail to be installed down a slope, on uneven ground or down a small flight of steps. The handrail is designed to sit at approx 90cm high, the ideal height for holding onto.
Available in a choice of finishes:
Bare Metal - supplied with no coatings applied, allowing you to add the finish of your choice and colour.
Black Zinc Primed - one coat of a zinc based paint is applied to help prevent rust, your rail will arrive black and will require a top coat and then the usual ongoing maintenance you traditionally associate with wrought iron.
Specification

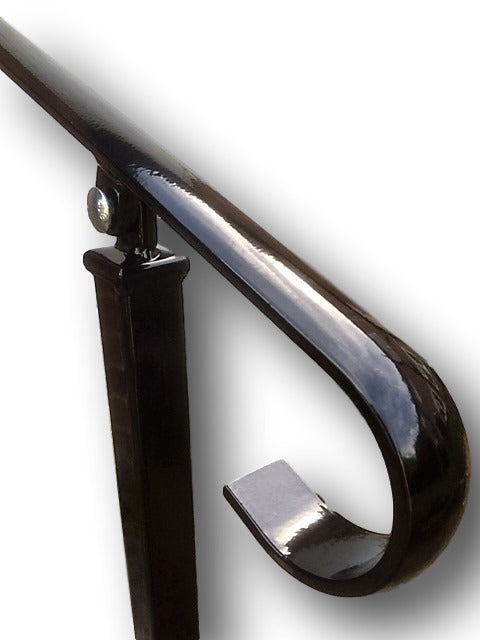

Top handrail - 40mm x 12mm convex half moon solid bar
Distance from end of the rail to the centre of the lug: 220mm
Choice of posts:
Concrete in posts - 40mm x 40mm box section, left 500mm longer, so that this portion can be concreted into the ground.
Bolt down posts - 40mm x 40mm x 2mm box section. Base plates: 100mm x 100mm x 5mm. Holes in Base plates: 9mm

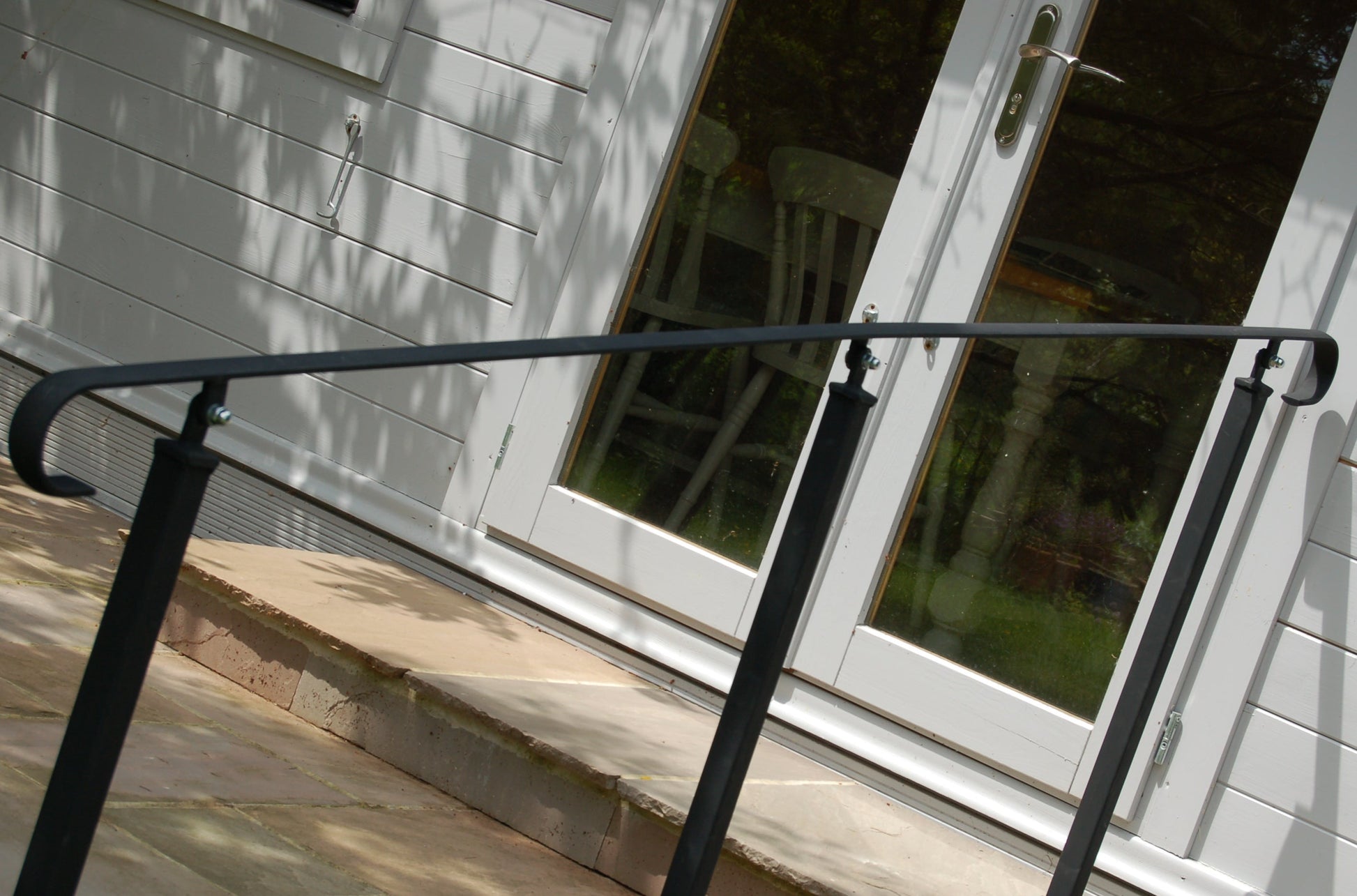

The handrail extends 20cm beyond the post at each end. Therefore a 5.2m long handrail will consist of 20cm of handrail, then a post (4cm) with 472cm of handrail between the two posts, a second post (4cm), with a further 20cm protruding at the other side of the post. The third and fourth posts are placed equally along the handrail.
Supplied with thunder bolts for fixing to brick, concrete and wood.
Materials
Materials
Dimensions
Dimensions
Care information
Care information
