Wrought Iron Metal Handrail on Three Posts - Atara - 2.6m - 4m

Wrought Iron Metal Handrail on Three Posts - Atara - 2.6m - 4m

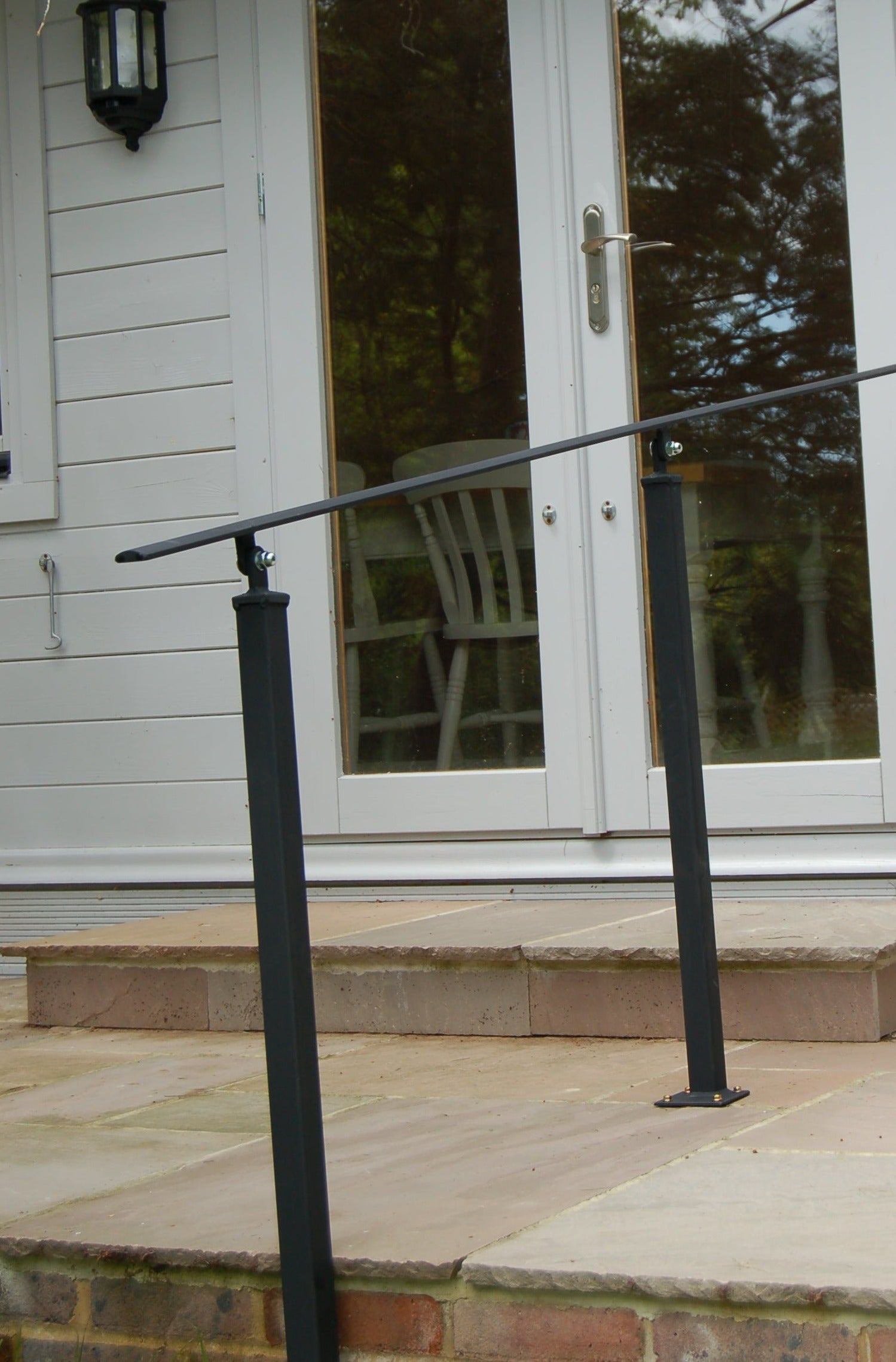

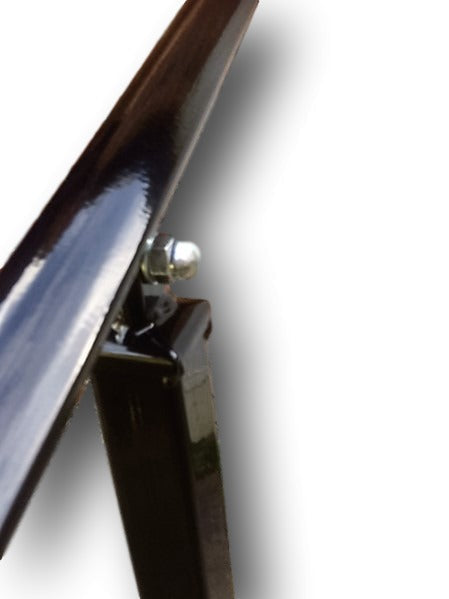

These versatile handrails are an affordable DIY method of adding a handrail to your property. The handrail pivots on the three posts, this allows the handrail to be installed down a slope, on uneven ground or down a small flight of steps. The handrail is designed to sit at approx 90cm high, the ideal height for holding onto.

Available in a choice of finishes:

Bare Metal - supplied with no coatings applied, allowing you to add the finish of your choice and colour.

Black Zinc Primed - one coat of a zinc based paint is applied to help prevent rust, your rail will arrive black and will require a top coat and then the usual ongoing maintenance you traditionally associate with wrought iron.

Specification

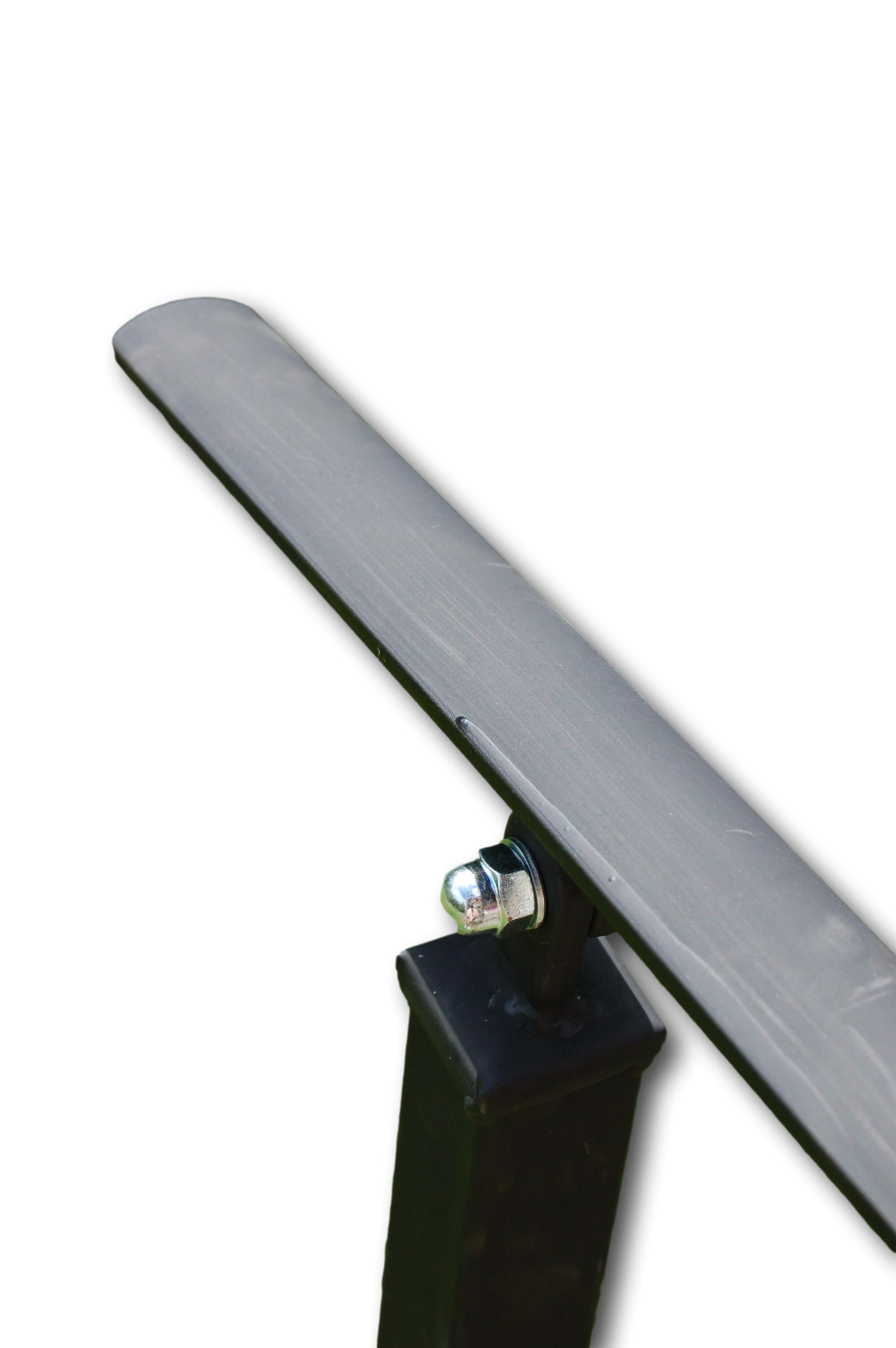

Top handrail - 40mm x 12mm convex half moon solid bar. Distance from end of the rail to the centre of the lug: 220mm

You have a choice of posts:

Concrete in posts - 40mm x 40mm box section, left 500mm longer, so that this portion can be concreted into the ground.

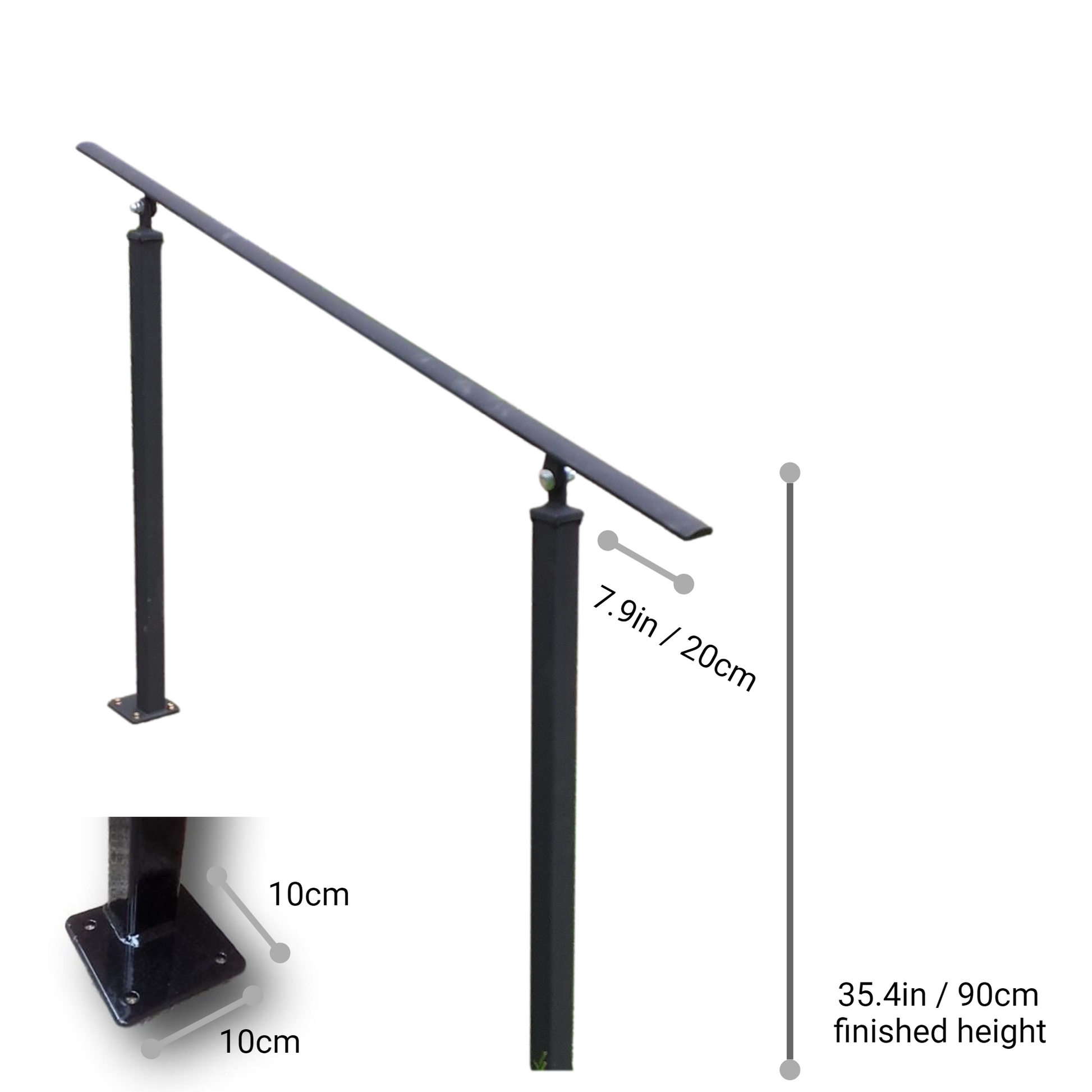

Bolt down posts - 40mm x 40mm x 2mm box section. Base plates: 100mm x 100mm x 5mm. Holes in Base plates: 9mm

Distance from end of the rail to the centre of the lug: 220mm

The handrail extends 20cm beyond the post at each end. Therefore a 3.2m long handrail will consist of 20cm of handrail, then a post (4cm) with 272cm of handrail between the two posts, a second post (4cm), with a further 20cm protruding at the other side of the post. The third post is placed centrally along the handrail, in this case at 1.6m.
