Wrought Iron Atara Handrail on Two Side Bolt Posts - 1m - 2.4m

Wrought Iron Atara Handrail on Two Side Bolt Posts - 1m - 2.4m

Regular price £160.00 GBP
Regular price Sale price £160.00 GBP
Sale Sold out
Tax included.
Handrail length
Finish

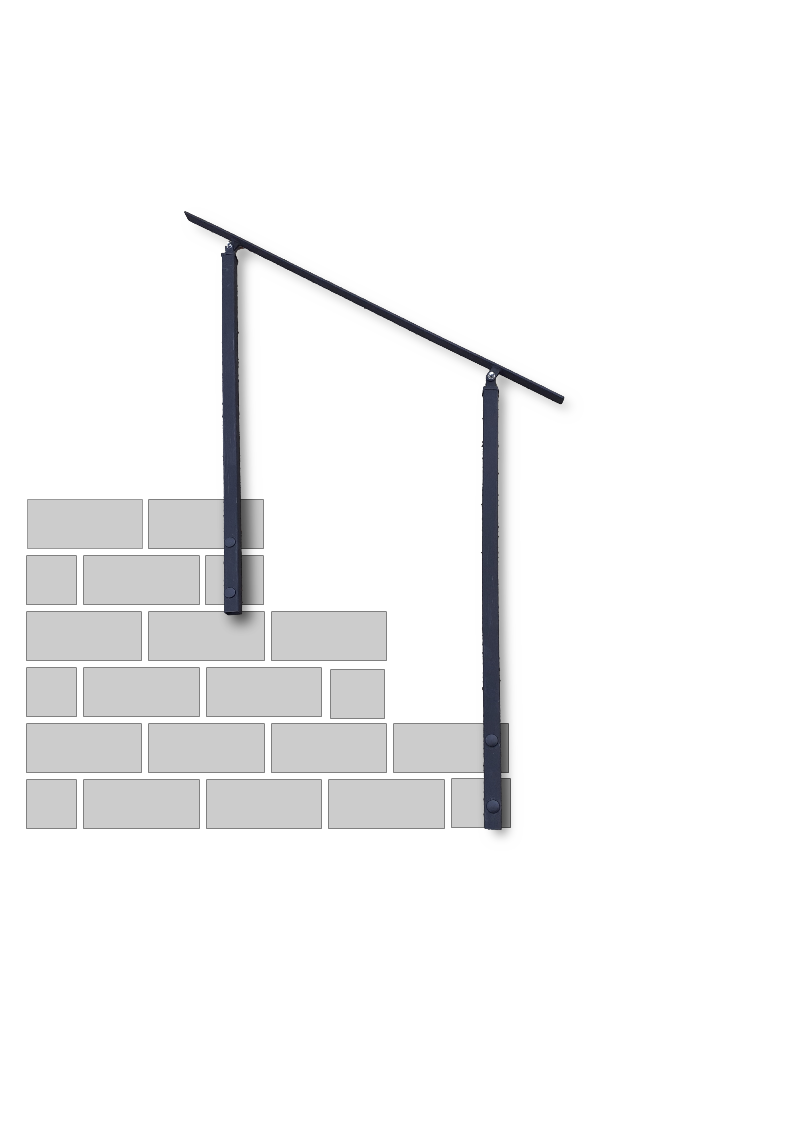

Wrought Iron Style Exterior Handrail on Two Pivoting Side Bolt Posts

These versatile handrails are an affordable DIY method of adding a handrail to your property. The handrail pivots on the two posts, this allows the handrail to be installed down a small flight of steps. The handrail is designed to sit at approx 90cm high, the ideal height for holding onto.

Available in a choice of finishes:

Bare Metal - supplied with no coatings applied, allowing you to add the finish of your choice and colour.

Black Zinc Primed - one coat of a zinc based paint is applied to help prevent rust, your rail will arrive black and will require a top coat and then the usual ongoing maintenance you traditionally associate with wrought iron.

Specification

Finished Height: 900mm

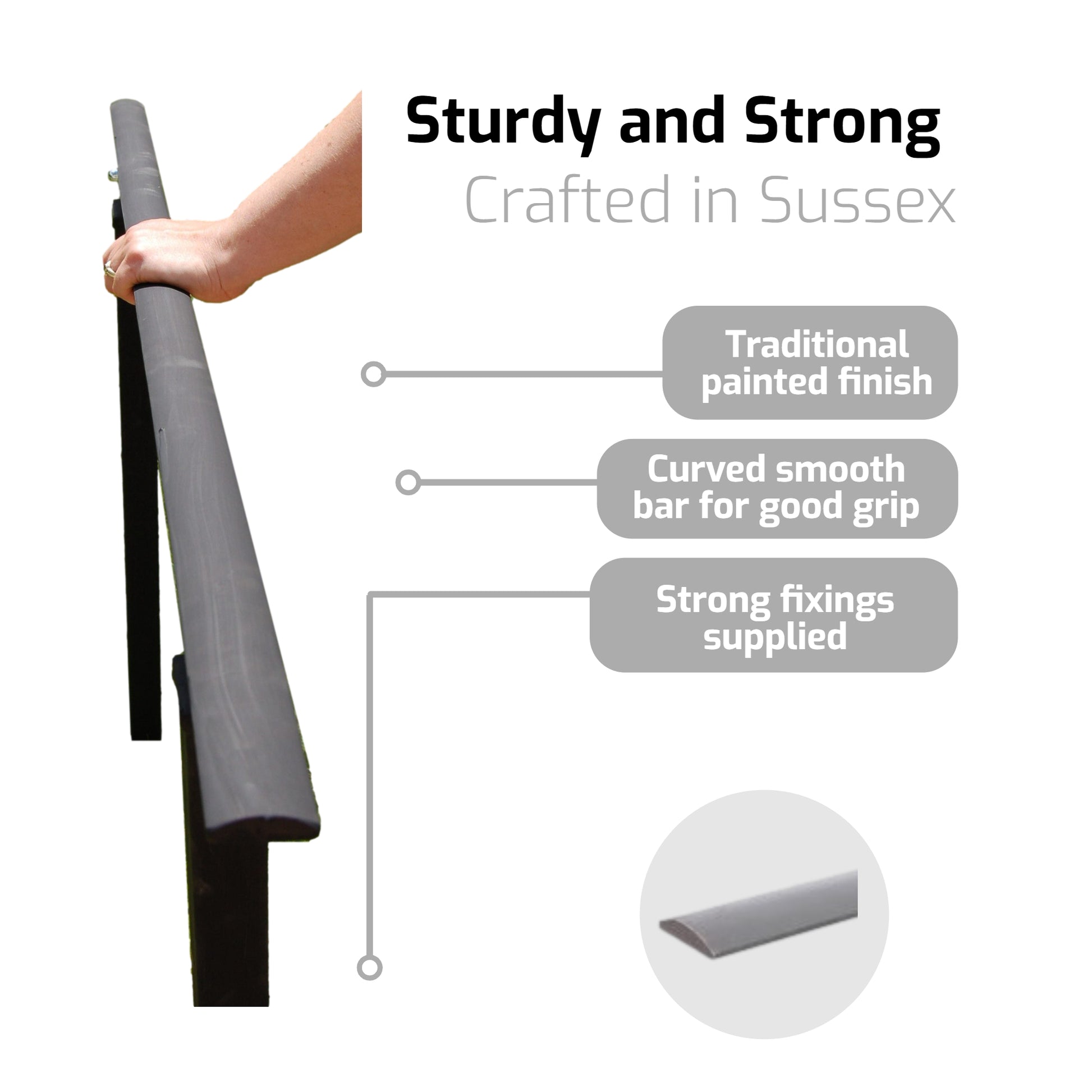

Top handrail - 40mm x 12mm convex half moon solid bar
Posts - 40mm x 40mm box section

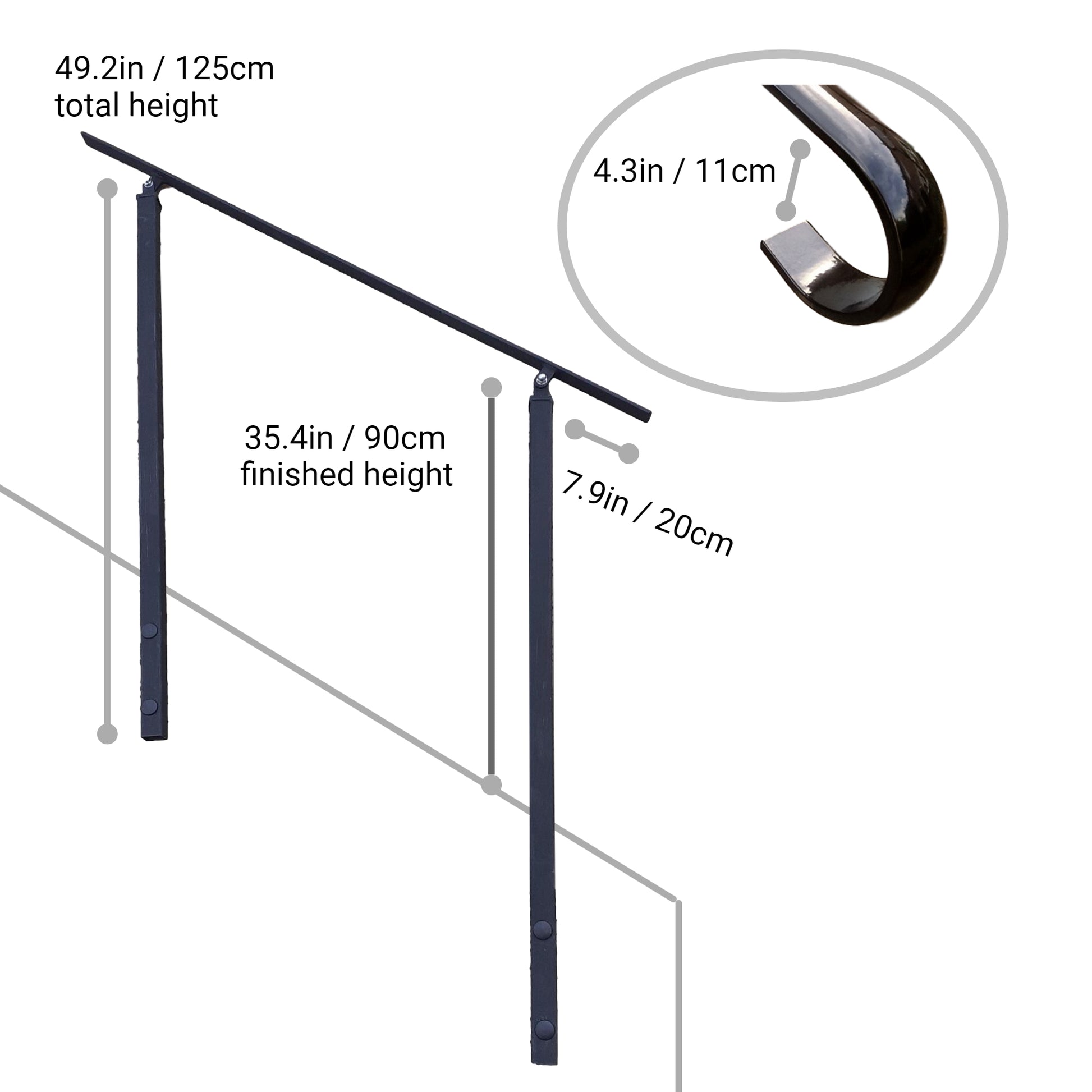

The handrail extends 20cm beyond the post at each end. Therefore a 1.2m long handrail will consist of 20cm of handrail, then a post (4cm) with 72cm of handrail between the two posts, a second post (4cm), with a further 20cm protruding at the other side of the post.


The side bolting post is 125cm long. The handrail is then secured on top which adds approx. 2cm to the height. There are two holes drilled in the posts. The first hole is drilled 6cm up from the bottom and the second hole is drilled 20.5cm up from the bottom.

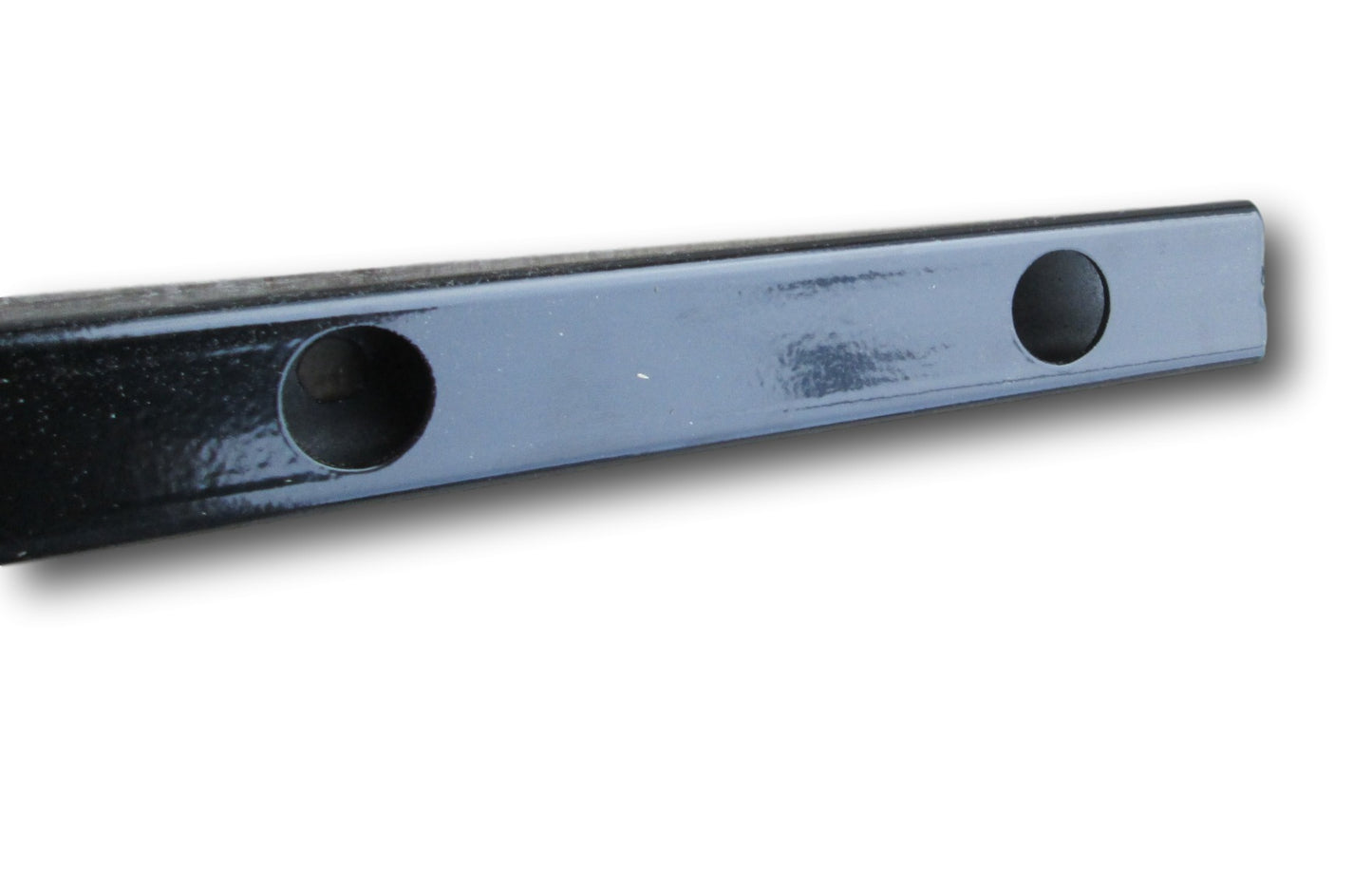

The posts are drilled all the way through, there is a 12mm hole one side, for securing to the wall and a 25mm hole the other to fit a socket through. Two black plastic plugs are supplied to cover the fixing holes once the post has been installed.


M10 thunder bolts are supplied for fixing the post to a brick or concrete wall. Please note that they are not suitable for fixing into wood.

Distance from end of the rail to the centre of the lug: 220mm

Measuring

We recommend that you measure along the pitch line of your steps (or slope). Whilst everyone's property is different, in general we suggest that the top post be placed on the landing and the bottom post on the bottom post.

The distance from the post to the end of the rail is 20cm.

Guarantee

All our products carry a two year guarantee against faulty workmanship. Unfortunately we cannot guarantee against rust as this is a natural effect on iron.
